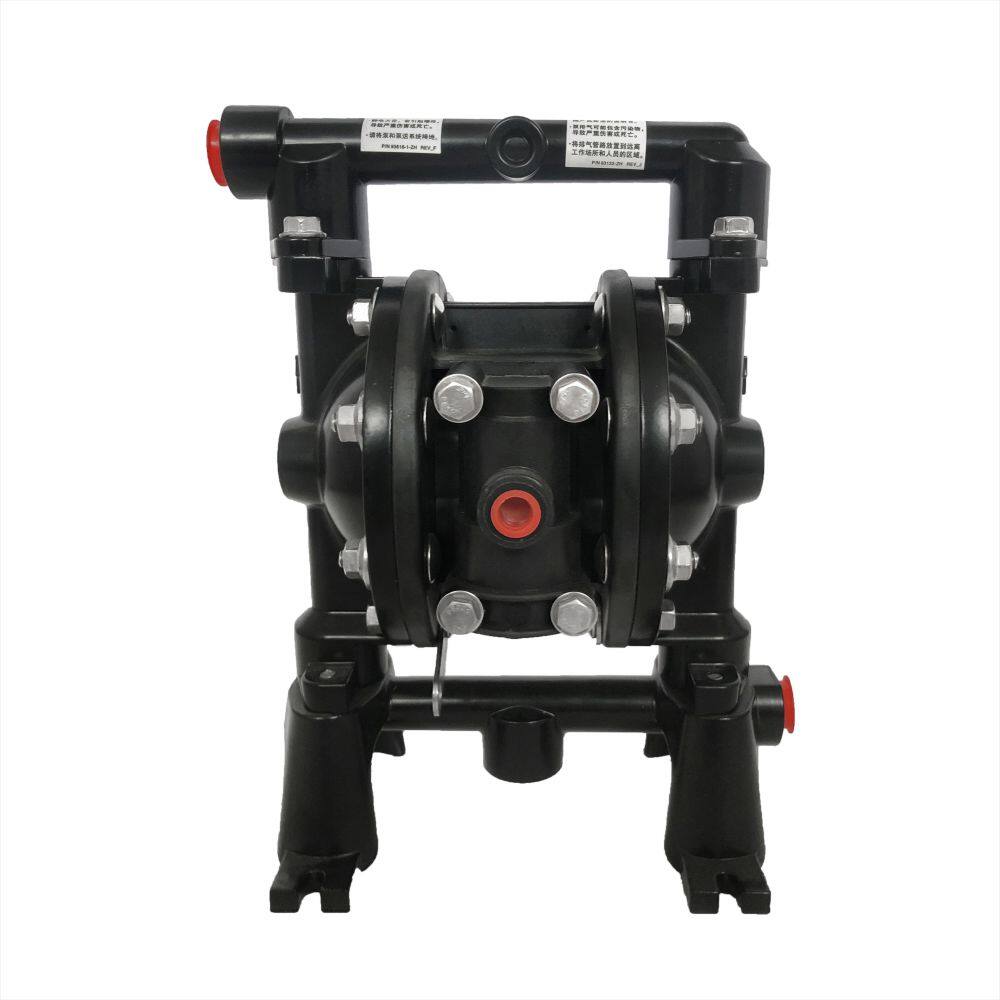

PD05R-BAS-STT-B Compatible With ARO Pump
Completely interchangeable with ARO pumps parts
ARO® is a registered trade mark of Ingersoll Rand Company.
Pumpkits® offers parts that fit ARO products, but they are not genuine ARO parts.
All names, numbers, symbols and descriptions are used for reference purposes only.
It is not implied that any part listed is the product of these manufacturers.
| Center Section Material | Polypropylene |
|---|---|
| Connection Type | BSP |
| Fluid Caps/Manifold Material | Aluminum |
| Hardware Material | Stainless Steel |
| Seat Material | 316 Stainless Steel |
| Ball Material | PTFE |
| Diaphragm Material | PTFE/Santoprene |
| Pump Type | Diaphragm Pump |
| Max Air Inlet Pressure | 6.9 bar (100 psi) |
| Max Material Inlet Pressure | 0.69 bar (10 psi) |
| Max Outlet Pressure | 6.9 bar (100 psi) |
| Air Consumption @ 40 psi | 1 cfm/gallon (approx.) |
| Max Flow Rate | 13 gpm (49.2 lpm) |
| Displacement / Cycle @ 100 p.s.i.g | 0.039 gal (0.15 lit) |
| Max Solid Size | 3/32″ (2.4 mm) |
| Max Temperature Limits (F) | -40° to 350° |
| Max Temperature Limits (C) | -40° to 177° |
| Noise Level @ 70 psi, 60 cpm | 71.1 db |
| Size | 0.5″ (12.7 mm) |
| Ratio | 1:1 |
| Maximum dry suction | 15 ft (4.6 m) |
| Muffler | Integral, Included |
