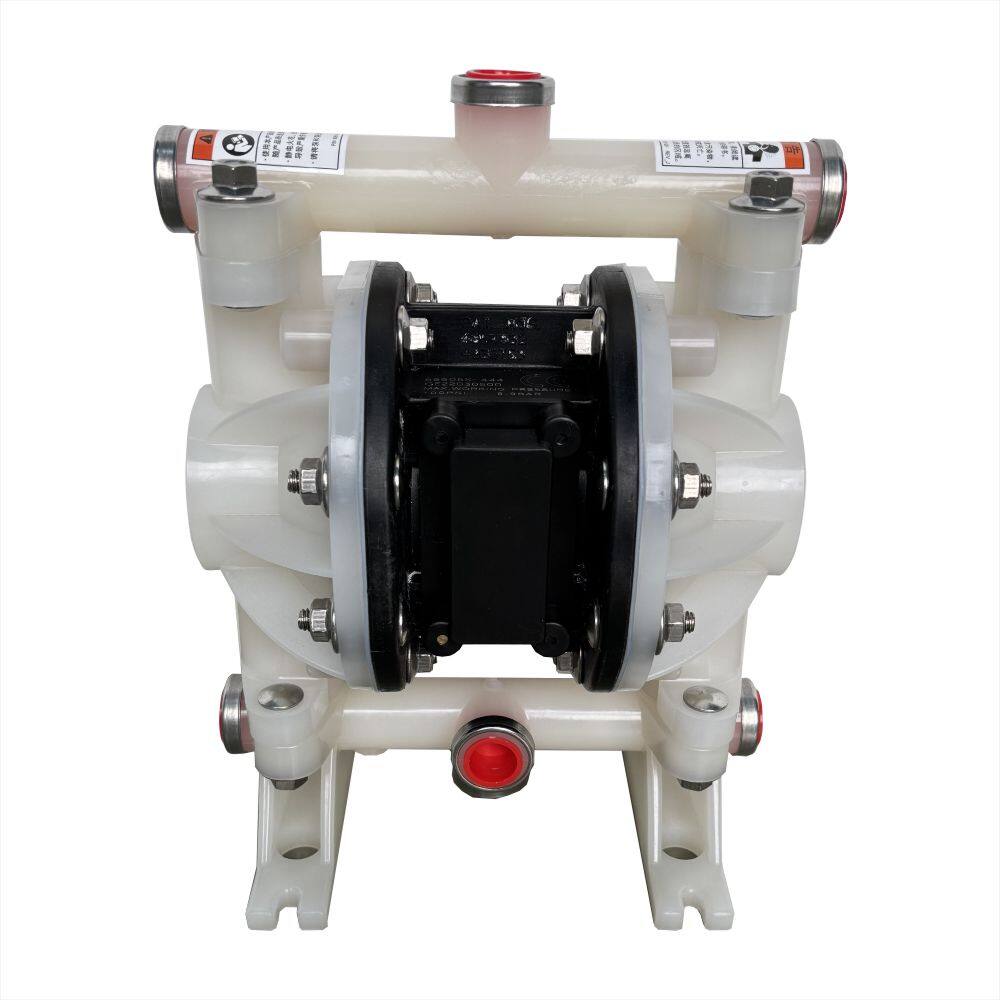

66605k-444 Compatible With ARO Pump
Completely interchangeable with ARO pumps parts
ARO® is a registered trade mark of Ingersoll Rand Company.
Pumpkits® offers parts that fit ARO products, but they are not genuine ARO parts.
All names, numbers, symbols and descriptions are used for reference purposes only.
It is not implied that any part listed is the product of these manufacturers.
| Fluid Cap & Manifold Material | PVDF |
|---|---|
| Seat Material | PVDF |
| Ball Material | PTFE |
| Diaphragm Material | PTFE / Santoprene |
| Pump Type | Diaphragm Pump |
| Max Air Inlet Pressure | 6.9 bar (100 psi) |
| Max Material Inlet Pressure | 0.69 bar (10 psi) |
| Max Outlet Pressure | 6.9 bar (100 psi) |
| Air Consumption | 1 cfm/gallon (approx) |
| Max Flow Rate(ball) | 13 gpm (49.2 lpm) |
| Max Solid Size | 3/32″ (2.4 mm) |
| Max Temperature Limits (F) | -40 to 350 ° |
| Max Temperature Limits (C) | -40 to 177 ° |
| Size | 0.5″ (12.7 mm) |
| Ratio | 1:1 |
| Material Inlet/Outlet (female) | 1/2 – 14 NPTF |
| Air Inlet (Female) | 1/4 – 18 NPTF |
| Standard | Internal |
| Optional (female) | 3/8 – 18 NPTF |
| Noise Level @ 70 psi, 60 cpm | 71.1 db(A) |
| Max Flow Rate(duckbill) | 0.032 gpm (0.12 lpm) |
| Muffler | Integral, Included |
| Maximum Dry Suction Lift | 15 ft (4.6 m) |
| Displacement per cycle(ball) | 0.04 gpm (0.15 lpm) |
| Displacement per cycle(duckbill)) | 0.032 gpm (0.12 lpm) |
