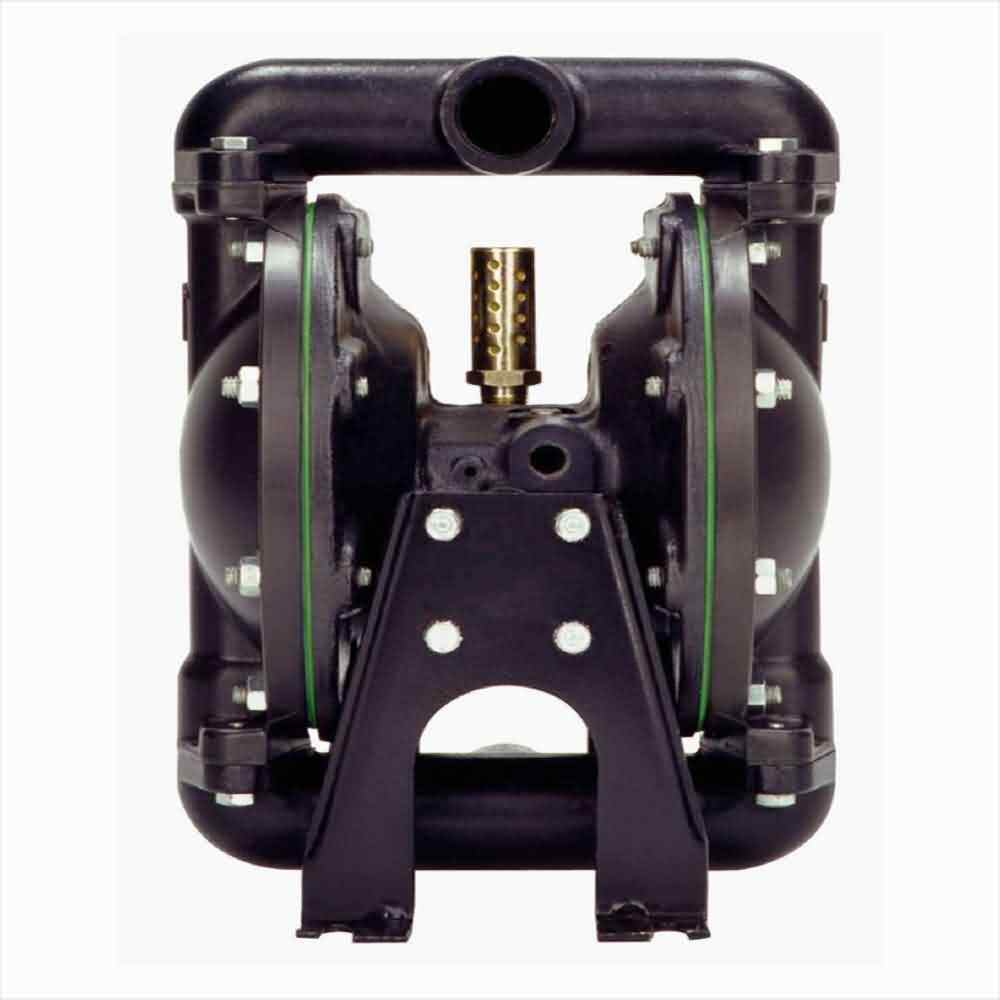

666120-2EB-C AODD PUMPS Metallic Diaphragm Pump
Completely interchangeable with ARO pumps parts
ARO® is a registered trade mark of Ingersoll Rand Company.
Pumpkits® offers parts that fit ARO products, but they are not genuine ARO parts.
| 666120-2EB-C Product Specific Data | |
|---|---|
| Fluid Cap/Manifold Material, Inlet/Outlet | Aluminum, Single |
| Seat Material | 316 Stainless Steel |
| Ball Material | Santoprene |
| Diaphragm Material | Santoprene |
| Pump Type | Metallic, Air Operated, Double Diaphragm. |
| Max Air Inlet Pressure | 8.3 bar (120 psi) |
| Max Material Inlet Pressure | 0.69 bar (10 psi) |
| Max Outlet Pressure | 8.3 bar (120 psi) |
| Max Flow Rate | 35 gpm (133 lpm) |
| Max Solid Size | 1/8″ (3.2 mm) |
| Max Temperature Limits (F) | -60° to 280° |
| Max Temperature Limits (C) | -51° to 138° |
| Noise Level @ 70 psi, 60 cpm | 64.5 db(A)* |
| Ratio | 1:1 |
| Material Inlet/Outlet (female) | .. |
| 66610X-X-C and 66611X-X-C | 1 – 11-1/2 NPTF |
| 66612X-X-C and 66613X-X-C | Rp 1 (1 – 11 BSP parallel) |
| Air Inlet (female) | 1/4 – 18 NPTF |
| Air Exhaust (female) | 3/8 – 18 NPTF |
| Size | 1″ (25.4 mm) |
