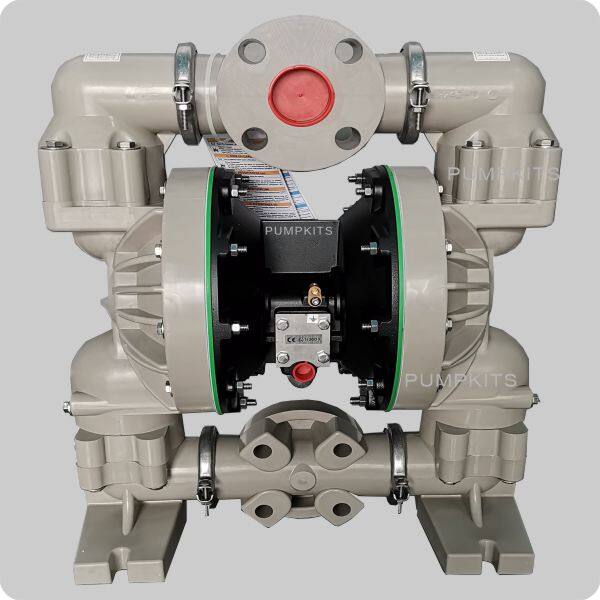

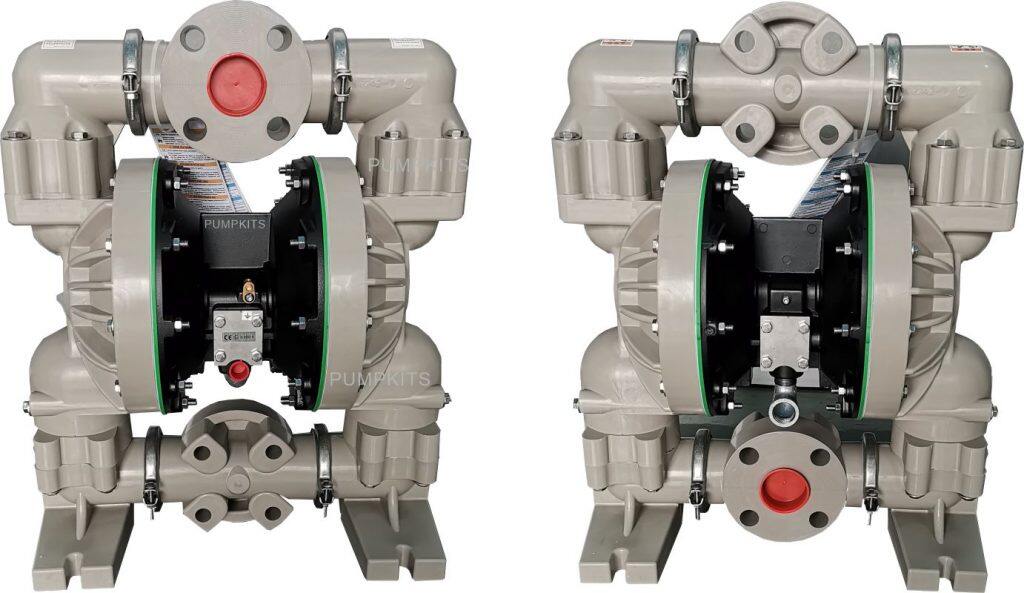

P6662A3-344-C Compatible With ARO Pump
Completely interchangeable with ARO pumps parts
ARO® is a registered trade mark of Ingersoll Rand Company.
Pumpkits® offers parts that fit ARO products, but they are not genuine ARO parts.
| Center Section Material | Aluminum |
|---|---|
| Fluid Cap & Manifold Material | Polypropylene |
| Seat Material | Polypropylene |
| Ball Material | PTFE |
| Diaphragm Material | PTFE/Santoprene |
| Pump Type | Non-Metallic, Air Operated, Double Diaphragm |
| Max Air Inlet Pressure | 8.3 bar (120 psi) |
| Max Outlet Pressure | 8.3 bar (120 psi) |
| Max Material Inlet Pressure | 0.69 bar (10 psi) |
| Max Flow Rate | 145 gpm (548.8 lpm) |
| Max Solid Size | 1/4″ (6.4 mm) |
| Max Temperature Limits (F) | 10° to 200° |
| Max Temperature Limits (C) | -120° to 930° |
| Ratio | 1:1 |
| Material Inlet/Outlet | 2″ ANSI Class 150 Flange |
| Air Inlet (female) | 1/2 – 14 NPTF |
| Air Exhaust (female) | 3/4 – 14 NPTF |
| Size | 2″ (51 mm) |
| Noise Level @ 70 psi, 60 cpm | 77.7 db(A) |
