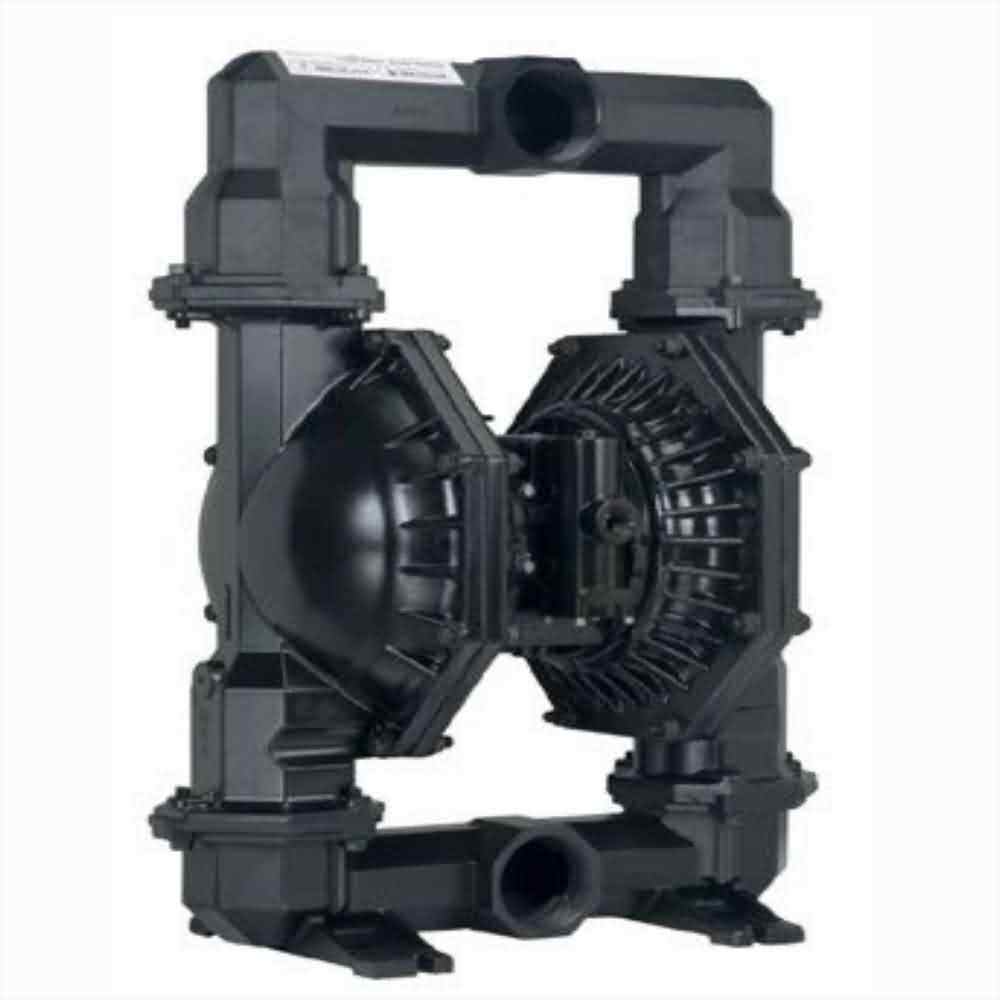

PD30A-AAP-AAA-C AODD PUMPS Expert Metallic Diaphragm Pump
Completely interchangeable with ARO pumps parts
ARO® is a registered trade mark of Ingersoll Rand Company.
Pumpkits® offers parts that fit ARO products, but they are not genuine ARO parts.
| PD30A-AAP-AAA-C Product Specific Data | |
|---|---|
| Electronic Interface | None |
| Air Motor/Air Cap Material | Aluminum/Aluminum |
| Connection Type | NPTF |
| Fluid Cap & Manifold Material | Aluminum |
| Hardware Material | Plated Steel |
| Seat Material | Santoprene |
| Ball Material | Santoprene |
| Diaphragm Material | Santoprene |
| Pump Type | Diaphragm Pump |
| Max Air Inlet Pressure | 8.3 bar (120 psi) |
| Max Material Inlet Pressure | 0.69 bar (10 psi) |
| Max Outlet Pressure | 8.3 bar (120 psi) |
| Max Flow Rate | 275 gpm (1041 lpm) |
| Displacement/Cycle @ 100 psig | 2.8 gal. (10.6 lit.) |
| Max Solid Size | 3/8″ (9.5 mm) |
| Mounting Dimensions | 10-5/32″ x 12-1/16″ (258 mm x 306 mm) |
| Max Temperature Limits (F) | -40° to 350° |
| Max Temperature Limits (C) | -40° to 177° |
| Noise Level @ 70 psi, 50 cpm | 83.0 db(A) |
| Fluid Ports Inlet/Outlet (bsp) | 3″ NPTF Rp3(3-11 BSP) (Center) / 3″ ANSI/DIN Flange |
| Max Dry Suction Lift | 14 ft (4.2 m) |
| Size | 3″ (76.2 mm) |
| Maximum Dry Suction Lift | 14 ft (4.2 m) |
| Muffler | 67389 Included |
