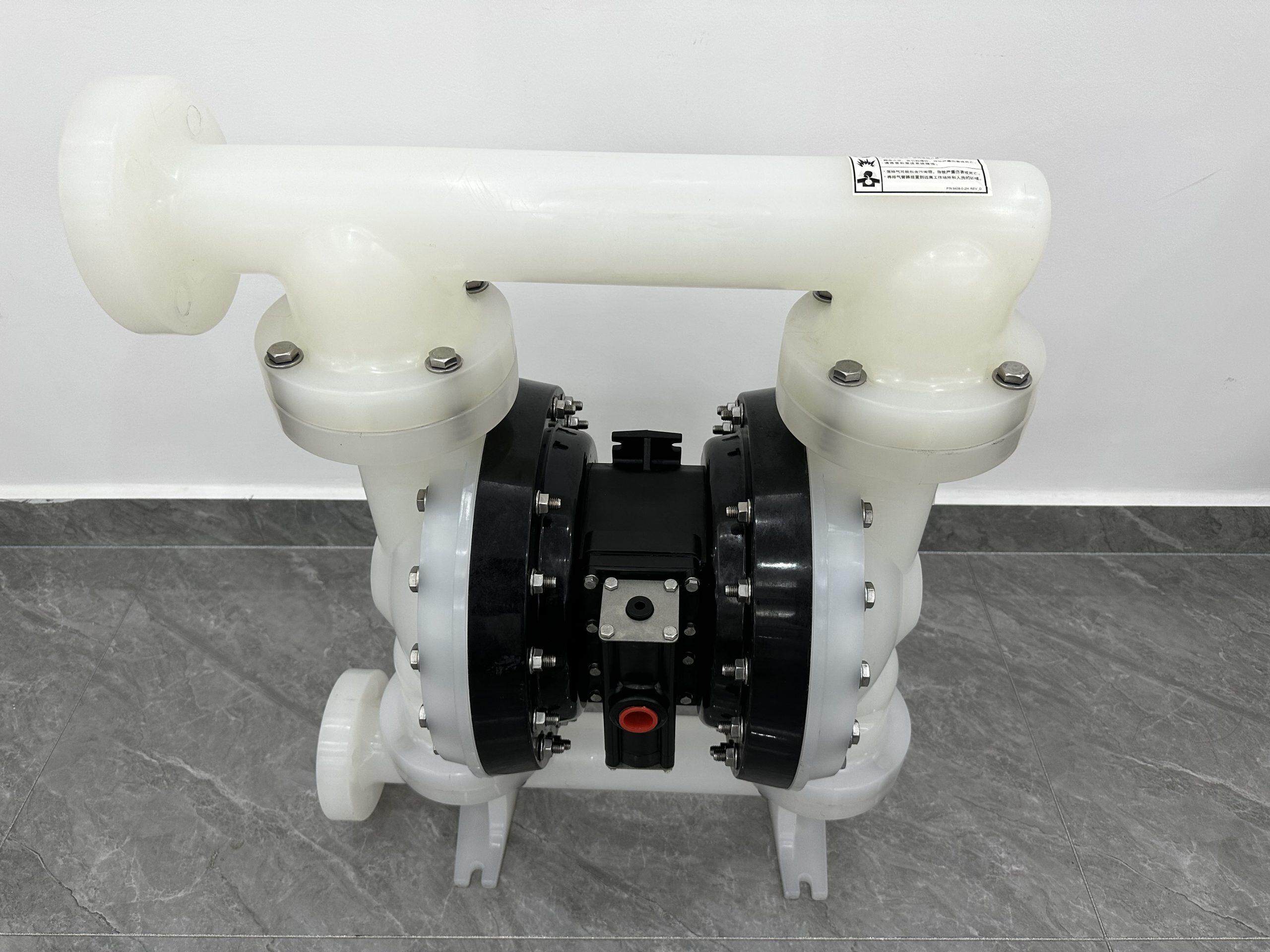

PD20P-FPS-PAA AODD Pumps Compatible With ARO
Completely interchangeable with ARO pumps parts
ARO® is a registered trade mark of Ingersoll Rand Company.
Pumpkits® offers parts that fit ARO products, but they are not genuine ARO parts.
All names, numbers, symbols and descriptions are used for reference purposes only.
It is not implied that any part listed is the product of these manufacturers.
| PD20P-FPS-PAA Product Specific Data | |
| Electronic Interface | None |
| Center Section Material | Polypropylene/Vinyl Ester |
| Connection Type | ANSI |
| Fluid Cap & Manifold Material | Polypropylene |
| Hardware Material | Stainless Steel |
| Seat Material | Polypropylene |
| Ball Material | Santoprene |
| Diaphragm Material | Santoprene |
| Pump Type | Diaphragm Pump |
| Max Air Inlet Pressure | 8.3 bar (120 psi) |
| Max Material Inlet Pressure | 0.69 bar (10 psi) |
| Max Outlet Pressure | 8.3 bar (120 psi) |
| Max Flow Rate | 184 gpm (696 lpm) |
| Displacement/Cycle @ 100 psig | 1.4 gal. (5.3 lit.) |
| Max Solid Size | 1/4″ (6.4 mm) |
| Max Temperature Limits (F) | -40° to 350° |
| Max Temperature Limits (C) | -40° to 170° |
| Noise Level @ 70 psi, 60 cpm | 85.0 db(A) |
| Mounting Dimension | 8.18″ x 14.16″ (207.8 mm x 359.7 mm) |
| Size | 2″ (51 mm) |
| Ratio | 01:01 |
| Material Inlet/Outlet | 2″ ANSI/DIN Flange |
| Air Inlet (female) | 3/4 – 14 NPT |
| Air Exhaust (female) | 1-1/2 – 11-1/2 NPSM |
| Maximum Dry Suction Lift | 14 ft (4.2 m) |
| Muffler | 93139 Included |
| AIR KIT | 637369 |
| WET KIT | 637373-AA |
