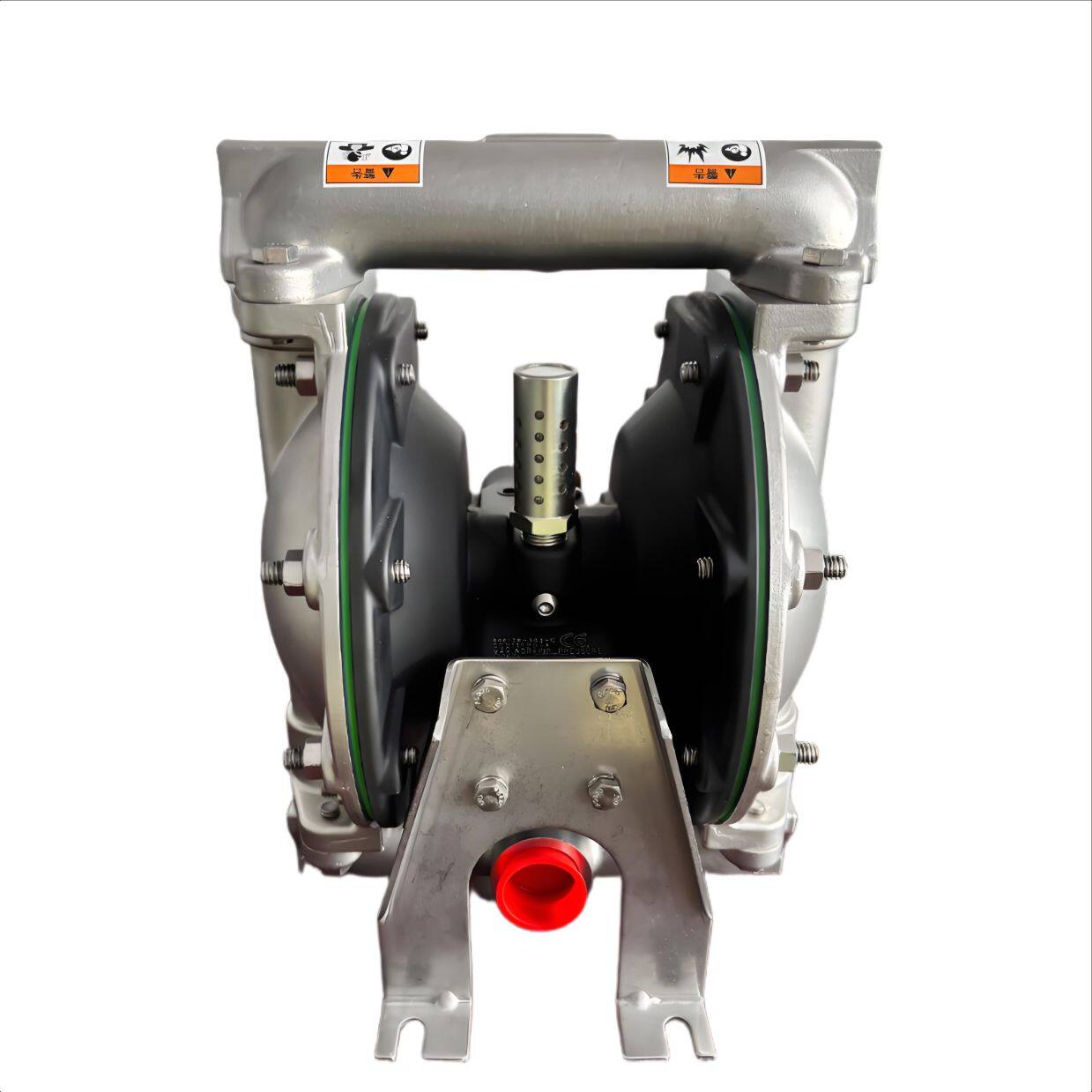

66612B-244-C AODD PUMPS Metallic Diaphragm Pump
Completely interchangeable with ARO pumps parts
ARO® is a registered trade mark of Ingersoll Rand Company.
Pumpkits® offers parts that fit ARO products, but they are not genuine ARO parts.
| Max. delivery rate: | 133 l/min. |
| Ratio: | 1:1 |
| Max. Operating Pressure: | 8.3 bar |
| Max. inlet pressure: | 0,69 bar |
| Displacement / cycle @ 6.9 bar: | 0,60 litres |
| Suction and discharge connection: | 1″ GNP F |
| Compressed air connection: | ¼” NPTF |
| material of the medium: | Stainless steel |
| Material air motor: | Aluminium |
| Material Hardware: | Stainless steel |
| Diaphragm material: | Ptfe |
| Material ball: | Ptfe |
| Material ball seat: | Stainless steel |
| Max. Solids passage: | 3.2 mm |
| Silencer: | mounted |
| Sound level: | 64.5 db(A) |
| Weight: | 16,35 kg |
| Temperature range: | +4° till +107° C |
| ATEX certified: | ATEX – Group II 2GD X |
| Air motor service kit available in the store: | 637118-C |
| Service kit fluid part available in the store: | 637119-44-C |
